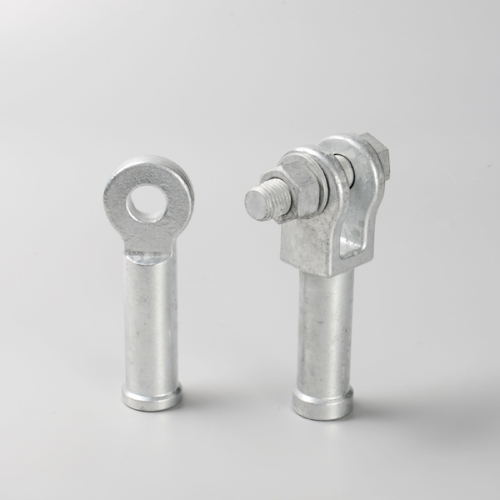

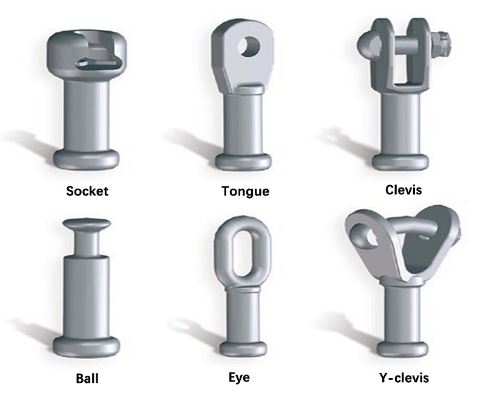

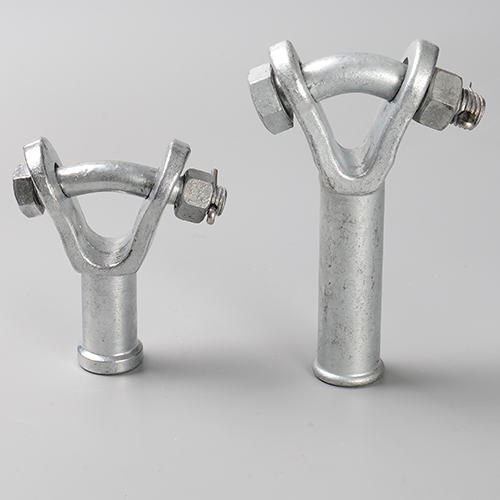

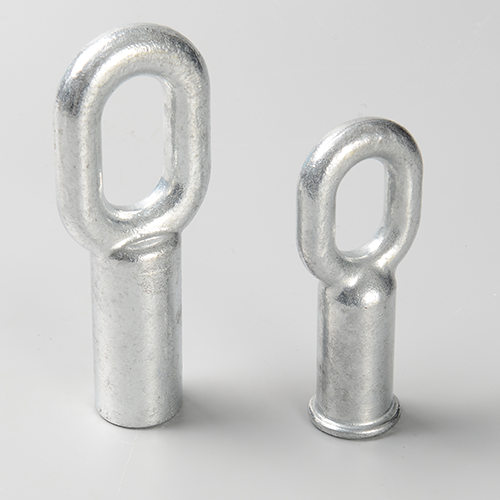

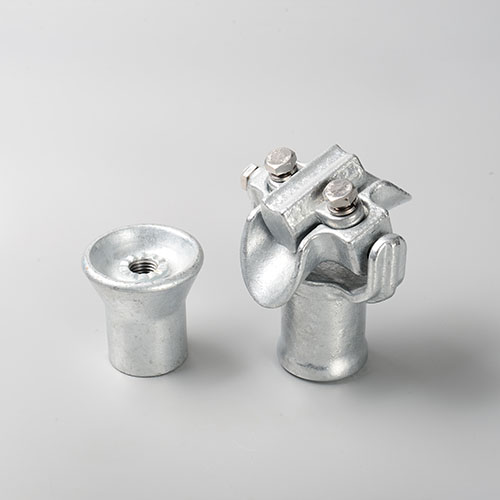

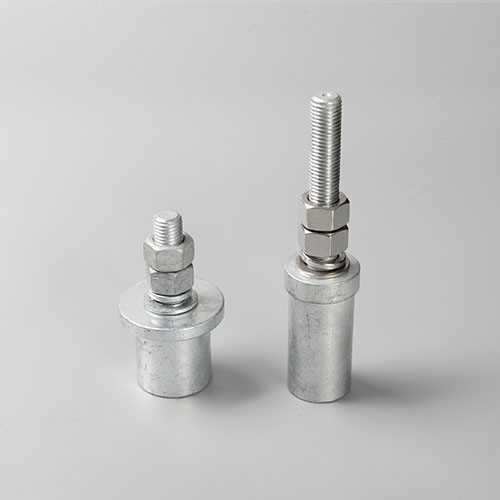

1. Different type of end-fittings
All types

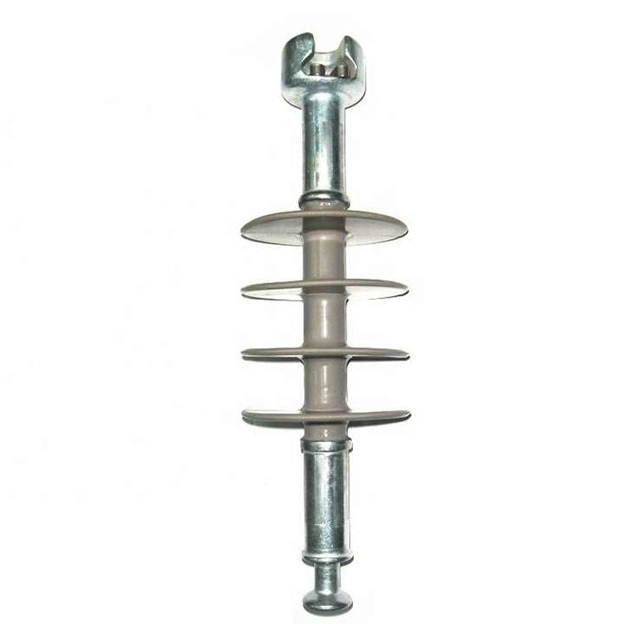

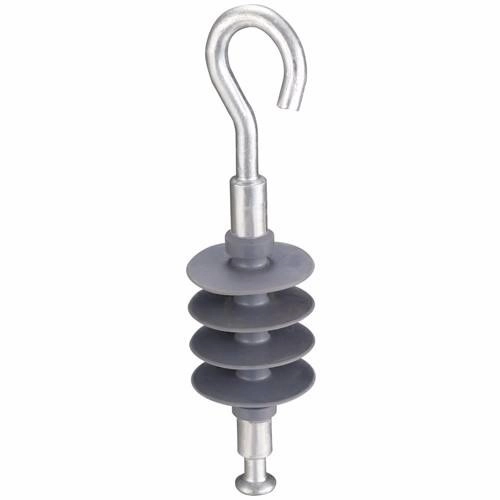

2. Composite Polymer Pin Insulator
11-15kV/22-24kV/33-36kV
Composite Polymer Insulator – PIN Type
05KN/ 10KN/ 12.5KN
25mm/KV, 31mm/kV, 45mm/kV
IEC 61109 / IEC 62217
Nominal Voltage
Highest Voltage
System Frequency
Creepage Distance
Power Frequency Withstand Voltage (Dry)
Power Frequency Withstand Voltage (Wet)
Dry Lightning Impulse Voltage withstand
: 11 kV
: 15 kV
: 50/60 Hz
: 320-450 mm
: 60-80 kV (rms)
: 40-50 kV (rms)
: 75-100 kVp.
22kV
28kV
50/60 Hz
560-700 mm
80-110 kV (rms)
60-80 kV (rms)
145-170kVp
33kV
36kV
50/60 Hz
900-1200mm
110-200 kV (rms)
70-150 kV (rms)
170-250kVp
For more details contact us

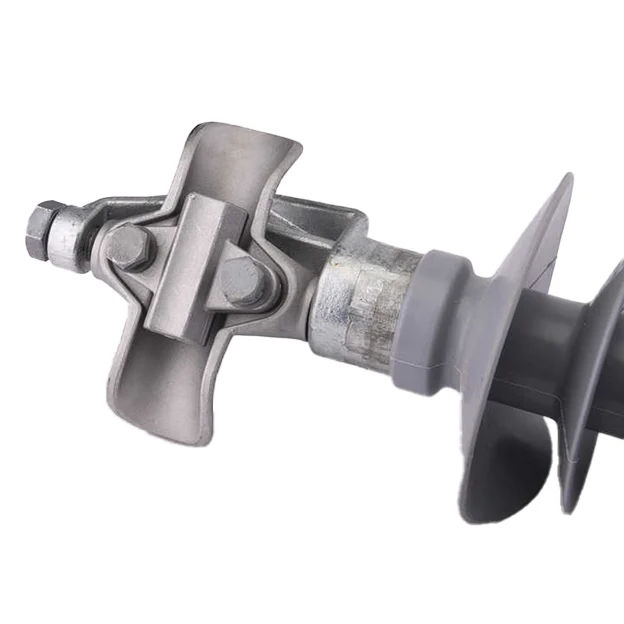

3. Composite Polymer Line Post Insulator
11-15kV/22-24kV/33-36kV
Horizontal Line Post Insulator / Vertical Line Post Insulator/ Tie Top Insulator
05KN/ 06KN/ 08KN/ 10KN/ 12.5KN
25mm/KV, 31mm/kV, 45mm/kV
IEC 61109 / IEC 62217 / IEC 62231 / IEC 60815
Nominal Voltage
Highest Voltage
System Frequency
Creepage Distance
Power Frequency Withstand Voltage (Dry)
Power Frequency Withstand Voltage (Wet)
Dry Lightning Impulse Voltage withstand
: 11 kV
: 15 kV
: 50/60 Hz
: 320-450 mm
: 60-80 kV (rms)
: 40-50 kV (rms)
: 75-100 kVp.
22kV
28kV
50/60 Hz
560-700 mm
80-110 kV (rms)
60-80 kV (rms)
145-170kVp
33kV
36kV
50/60 Hz
900-1200mm
110-200 kV (rms)
70-150 kV (rms)
170-250kVp
For more details contact us

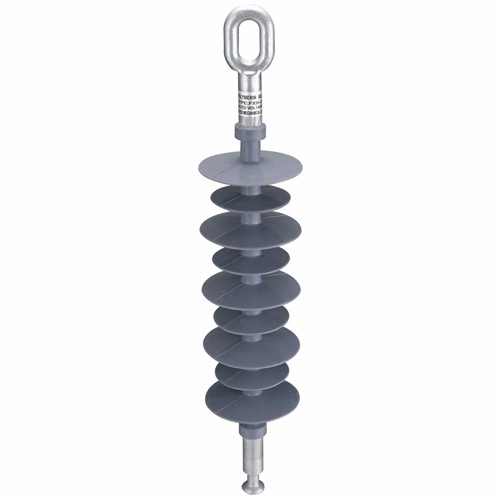

4. Composite Polymer Post Insulator
11-15kV/22-24kV/33-36kV
Post Insulator/ Station Post Insulator/ Bus Post Insulator/ Solid Core Insulator
05KN/ 06KN/ 08KN/ 10KN/ 12.5KN
25mm/KV, 31mm/kV, 45mm/kV
IEC 61109 / IEC 62217 / IEC 62231
Nominal Voltage
Highest Voltage
System Frequency
Creepage Distance
Power Frequency Withstand Voltage (Dry)
Power Frequency Withstand Voltage (Wet)
Dry Lightning Impulse Voltage withstand
: 11 kV
: 15 kV
: 50/60 Hz
: 320-450 mm
: 60-80 kV (rms)
: 40-50 kV (rms)
: 75-100 kVp.
22kV
28kV
50/60 Hz
560-700 mm
80-110 kV (rms)
60-80 kV (rms)
145-170kVp
33kV
36kV
50/60 Hz
900-1200mm
110-200 kV (rms)
70-150 kV (rms)
170-250kVp
For more details contact us

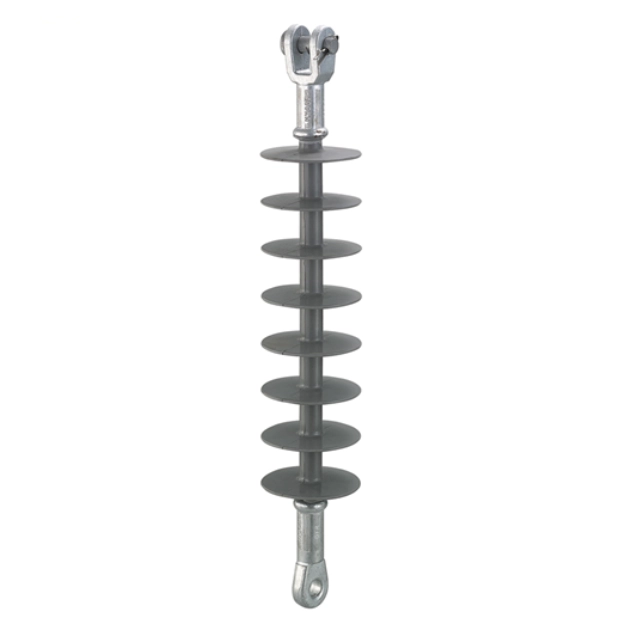

5. Composite Polymer Disc (Suspension/ Tension) Insulator

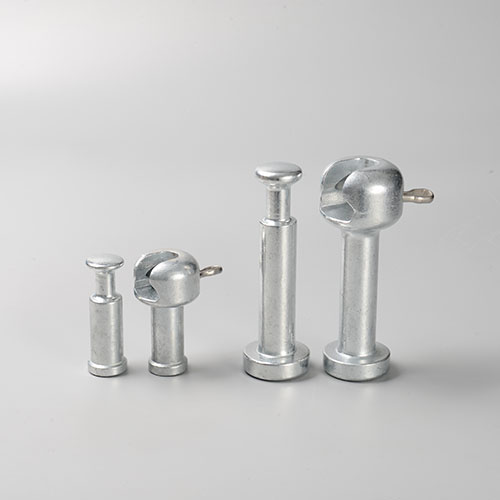

Ball & Socket (B&S)
Eye & Tongue (e&T)
Hook TYpe
Tongue & Clevis (t&C)
11-15kV/22-24kV/33-36kV
Ball & Socket (B&S)/ Tongue & Clevis (T&C)/ Eye & Tongue (E&T)/ Ball & Hook (B&H)
45KN/ 70KN/ 90KN/ 120KN
25mm/KV, 31mm/kV, 45mm/kV
IEC 61109 / IEC 62217
Nominal Voltage
Highest Voltage
System Frequency
Creepage Distance
Power Frequency Withstand Voltage (Dry)
Power Frequency Withstand Voltage (Wet)
Dry Lightning Impulse Voltage withstand
: 11 kV
: 15 kV
: 50/60 Hz
: 320-450 mm
: 60-80 kV (rms)
: 40-50 kV (rms)
: 75-100 kVp.
22kV
28kV
50/60 Hz
560-700 mm
80-110 kV (rms)
60-80 kV (rms)
145-170kVp
33kV
36kV
50/60 Hz
900-1200mm
110-200 kV (rms)
70-150 kV (rms)
170-250kVp
